[디지털 회로] FSM/combinational & sequential logic 본문
1) combinational & sequential logic
combinational logic : 현재의 입력만 출력에 영향을 미치는 구조
sequential logic : 현재의 입력 + 과거의 출력(memory)-현재 state이 모두 현재 출력에 영향을 미치는 구조
- synchronous : clock 하나에 의해 동기화 되는
-asynchronous : clock이 없는 or clock과 다른 신호들(ex-n_rst)을 포함해 동기화 되는

2) FSM
: state와 input이 output에 영향을 미치는 logic 구조

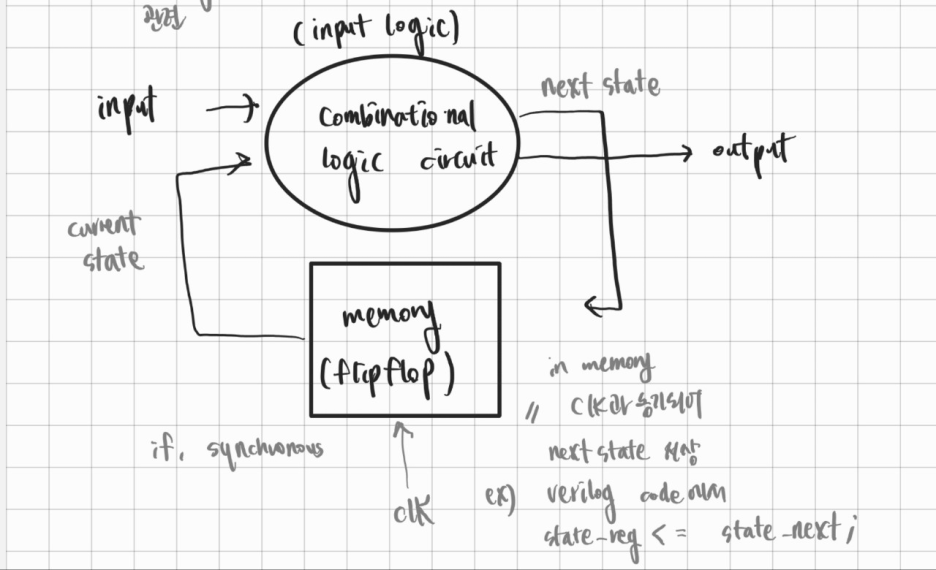

sequential logic내에서 combination logic circuit을 거치면 next state가 결정이 되는데 이 부분이
memory(flipflop)로 들어가 clk과 동기되어 저장되고, 그 memory에서 나온 output이 current state가 됨
input(by combinatioal logic) + state(by memory)로 output logic이 결정됨

moore machine
mealy는 여기서 input이 output logic에도 반영되도록
+ moore machine & mealy machine
*moore : 현재 state만이 output logic에 영향을 미치는 sequential logic
: output이 안정적
*mealy : input과 현재 state가 모두 output logic에 영향을 미치는 sequential logic
mealy : 설계의 어려움
: 시간지연 발생
*verilog code로 구현한 sequential logic & combinational logic
*sequential logic :
next state로 current state를 만듦(clk이 동기화될 때) = combinational logic을 거쳐 나온 next_state를 memory(flipflop)에 저장해
이 값을 current state에 대입함
*combinational logic :
-next state 만드는 logic
-output 만드는 logic
*moore : output logic에서 always@(state)
*mealy : output logic에서 always@(state, input)
*verilog code로 구현한 FSM
//state transition logic
(negedge rst_n일 때 초기화 or posedge clk일 때) next_state를 current_state에 대입
//combinational logic - next state 결정
(state나 input이 바뀔 때) case문에 따라 state가 달라질 때 if(input이 ??이면) next state가 바뀌는 구조
//output logic
state에 의해서만 output 결정되면 moore
input, state가 동시에 output 결정하면 mealy
